The Swan AMI Dist Series distribution monitor line offers three options for measuring chlorine, pH, conductivity and turbidity on one easy-to-install, easy-to-maintain panel. Versatile output options ensure water quality throughout your distribution system, providing piece of mind and customer satisfaction.
Three models are available for continuous monitoring of critical parameters for early warning at wells, pump stations and throughout the distribution system.
- AMI Dist 1 features reagent-less free chlorine measurement.
- AMI Dist 2 provides colorimetric, DPD-based free chlorine measurement.
- AMI Dist 3 provides colorimetric, DPD-based free and total chlorine measurement.
All three include pH and conductivity sensors in an easily accessible and easy-to-service flow cell. They also feature Swan’s non-contact Turbiwell turbidity monitoring.

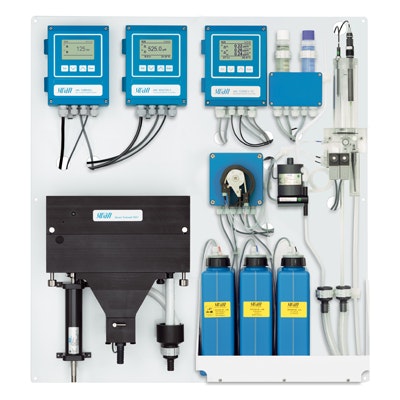

The complete system comes pre-mounted on a panel and ready for operation. Simple 4-20 mA outputs for each parameter used with SCADA provide an in-depth record of water quality. Built-in surveillance functions generate alarms if measurement is not valid, such as missing flow, empty reagents, and valve and photometer functionality.
